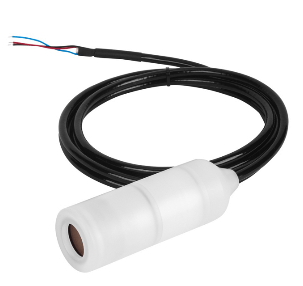

PTFE Level Probe

PTFE level probe

Use medium :Liquid

Shall not apply to the medium :Solid

Full PTFE construction
Submersible measurement
PTFE cable
Constant current supply
Using high reliable and stable ceramic pressure cell

Parameters for details

Specially designed for corrosive medium level measurement.

Level measuring
Building automation, constant pressure water supply
Metallurgy, machine, Environmental Protection
Medical treatment, vacuum equipment

Wide measuring ranges
Corrosion Proof, moist proof, frost proof, seepage prevention
Various signal output for industrial standard, flexible calibration
High accuracy, good stability

Pressure range: 0~1mH2O~20mH2O
Over load: 150%FS
Output: 4-20mA, 0-5V,0.5-4.5V
Power supply: 12~36VDC
Combine error: 0.25%FS; 0.5% FSO (Including Linearity, Repeatability & Hysteresis)
Long term stability: ≤+/-0.2%FS/year
Repeatability: ≤+/- 0.2%FSO
Response time: <10ms
Pressure connection: screw thread , throw-in type
Temperature compensation: 0℃~65℃
Operating temperature: 0℃~80℃
Protection grade: IP68
